Harlequin CAP25 Sewage Treatment Plant | Continuous Aeration | Up to 25 People | CAP25

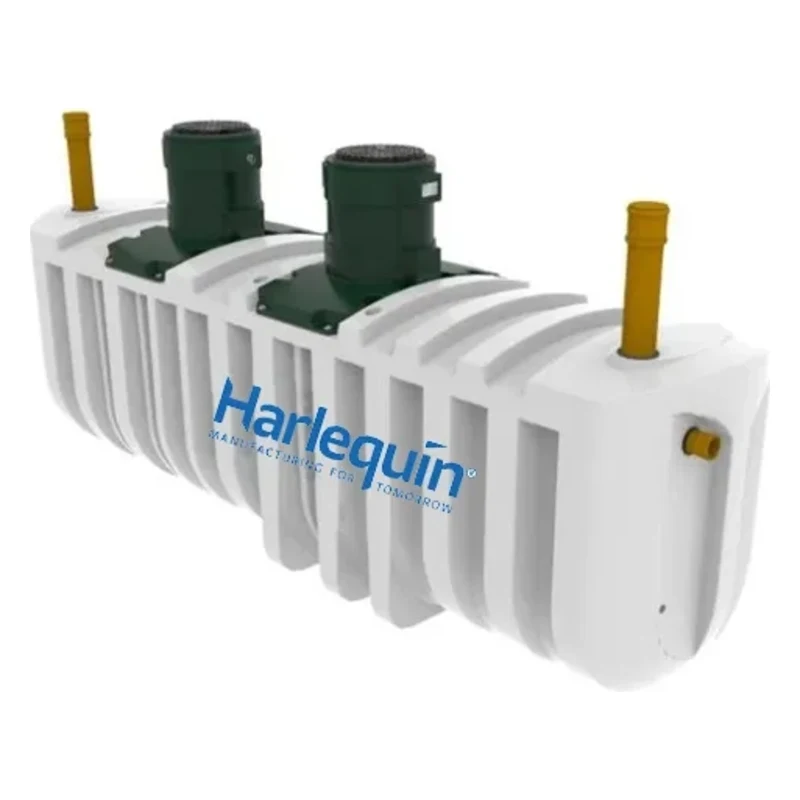

Harlequin CAP25 Sewage Treatment Plant

The Harlequin CAP25 is a continuous aeration sewage treatment plant for homes and buildings with up to 25 people. It treats all the wastewater from toilets, bathrooms, kitchens and laundry so the cleaned water can go to a drainage field, soakaway or watercourse. The tank is one piece medium density polyethylene with a bio media system, and Harlequin quote 96.2% pollutant removal.

Choose the outlet, inlet depth and alarm from the options above. The price shown first is for a gravity outlet at the standard inlet depth with no alarm. Pick the pumped outlet if the treated water can’t flow away by gravity, as it has a pump built into the tank. Risers are for when your drain comes in deeper than the standard inlet.

Key Features

• Up to 25 people
• Certified to EN 12566-3
• 110mm inlet and outlet
• 2 year Harlequin warranty when the plant is registered

Typical Uses

• Shared drainage for several houses
• Small commercial sites, holiday lets and farms
• Replacing larger septic tank systems

Delivery and Offloading

Delivery is included to most of mainland UK. It usually arrives in 3 to 4 weeks, and we’ll confirm the delivery day with you before it’s sent out.

It’s dropped at a kerbside or hard standing point. You’ll need a suitable machine or several people to offload it. Please make sure a large delivery vehicle can reach your site. If you need a HIAB (crane) offload, the delivery is inside the M25, or the delivery is to the Scottish Highlands or islands, Isle of Wight, Isle of Man, Channel Islands or Northern Ireland, call us on 01522 396350 before ordering as these cost extra.

Installation and Regulations

A treatment plant must be installed by a competent installer to Harlequin’s instructions and Building Regulations Part H. If it discharges to a watercourse or to ground in England it must meet the Environment Agency general binding rules, otherwise you’ll need a permit. Scotland, Wales and Northern Ireland have their own rules, so check with SEPA, Natural Resources Wales or NIEA before you install.
