Harlequin 1100 Litre Effluent Pump Station | Single Effluent Pump | 1100PSE1

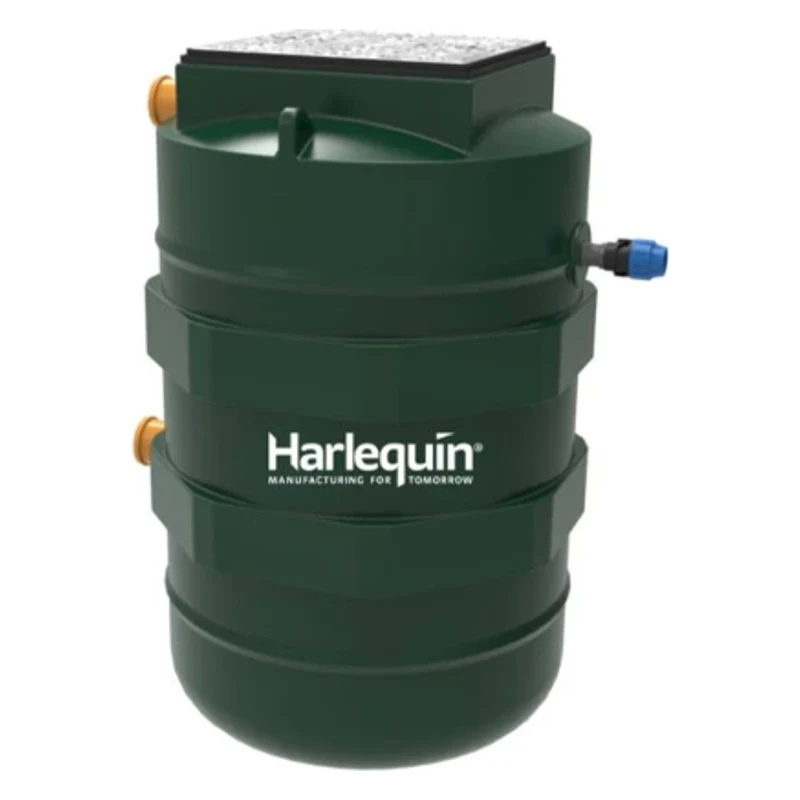

Harlequin 1100 Litre Effluent Pump Station

A Harlequin 1100 litre pump station with one DAB pump. The effluent pump is for clean water, grey water or treated effluent from a sewage treatment plant. The tank gives 24 hours storage for up to 7 people. The tank is one piece medium density polyethylene.

A high level alarm can be added to the single pump version. Call us on 01522 396350 for a price if you need one.

Key Features

• 1,140 litres capacity
• Single DAB effluent pump
• 110mm inlet and 110mm services duct
• 50mm or 63mm outlet (depending on pump)
• Double sealed 600 x 600mm galvanised steel cover with locking screws
• Brass gate valve and PVC union for easy servicing
• Non-return valve on all pumps
• Stainless steel pump lifting chain
• Moulded in lifting eyes
• 1000 x 1000 x 1645 mm

Typical Uses

• Pumping treated water from a sewage treatment plant up to a drainage field or watercourse
• Grey water and surface water where gravity won’t work

Delivery and Offloading

Delivery is included to most of mainland UK. It usually arrives in 3 to 4 weeks, and we’ll confirm the delivery day with you before it’s sent out.

It’s dropped at a kerbside or hard standing point. You’ll need a suitable machine or several people to offload it. Please make sure a large delivery vehicle can reach your site. If you need a HIAB (crane) offload, or the delivery is to the Scottish Highlands or islands, Isle of Wight, Isle of Man, Channel Islands or Northern Ireland, call us on 01522 396350 before ordering as these cost extra.

Pump stations should be installed by a competent installer and wired by a qualified electrician, following Harlequin’s installation guide.
